Cleanroom Foam Swab FS750

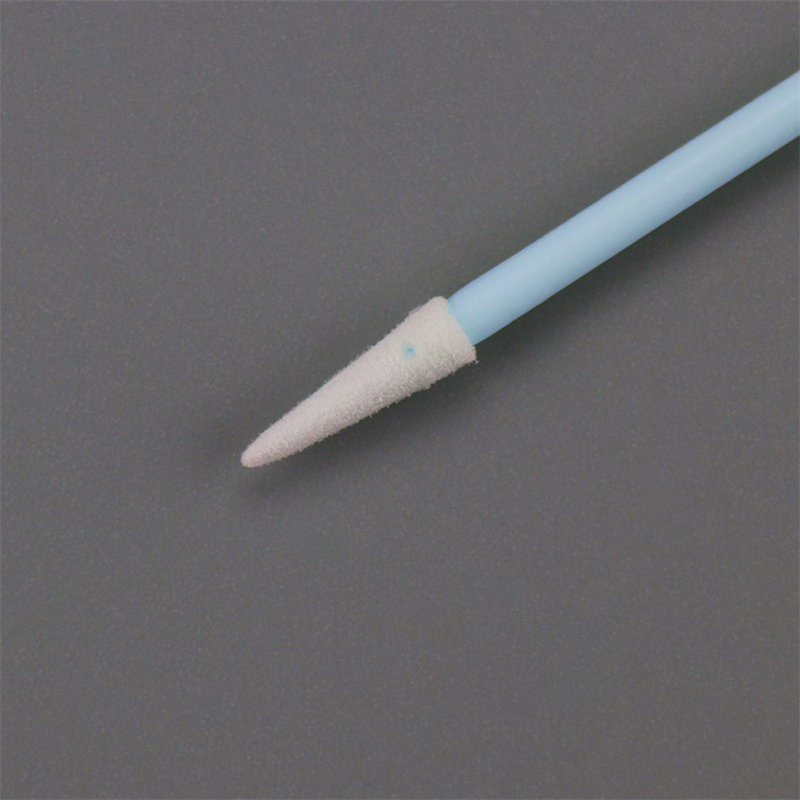

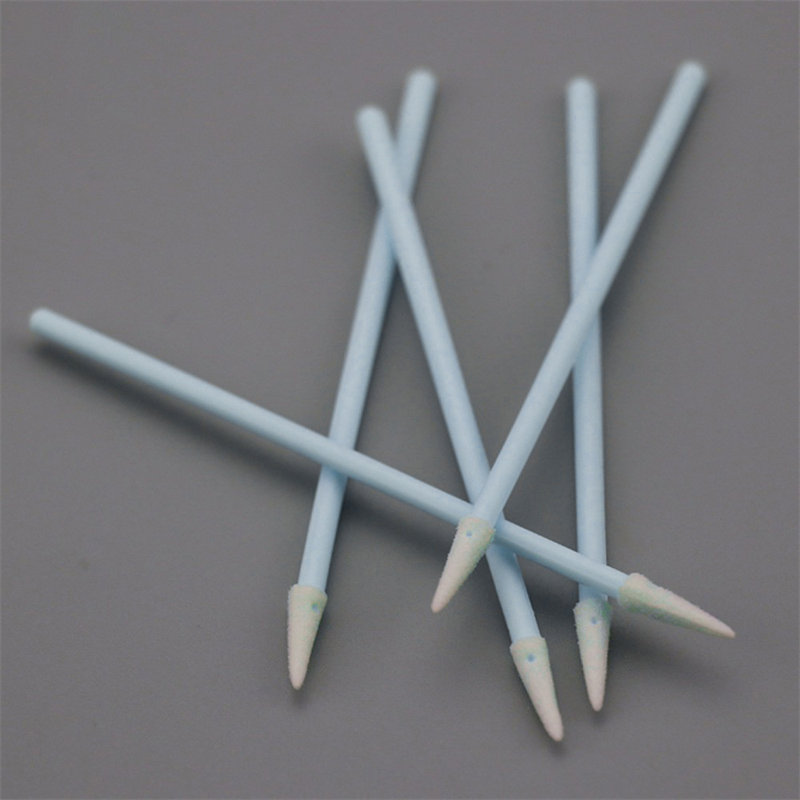

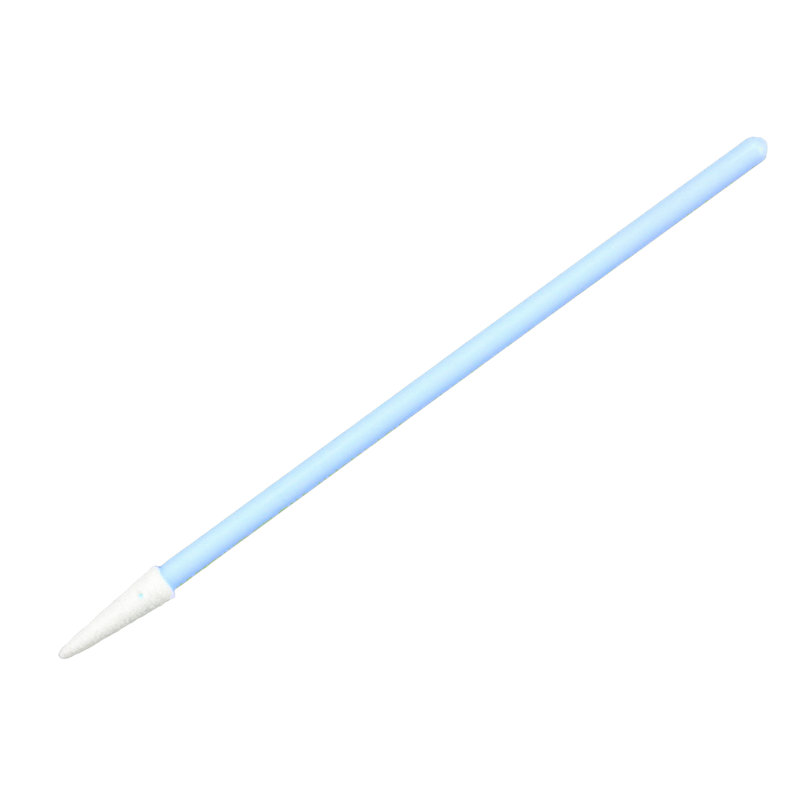

Kleentips mini compressed foam swab with small tapered pointed head and rigid handle.
Kleentips mini compressed foam swab with small tapered pointed head and rigid handle.
Description:
Meditech’s Cleanroom Foam Swab FS750 is constructed from compressed, 100 ppi (Z) open-cell
polyurethane foam that is free from organic contaminants. The foam is thermally bonded to the
handle, thus, eliminating the use of contaminating adhesives. It has a compact mini compressed
foam head which possesses firmness and a pointed tip. It is an excellent and popular swab for
cleaning small slots, grooves, and right angle corners on the sliders and actuator arm of the
magnetic head stack assembly in hard disk drive industry.
ESD safe, static dissipative rigid and compact handle is available as option. They feature very low
non-volatile residue (NVR), ion content and particle generation. Designed for general purpose
cleaning, optional ESD safe handle, foam swabs FS750E which is inherently static dissipative
are the ideal swabs to use in cleaning static sensitive Components and provide clean permanent
ESD protection with contributing particulate contamination
Features:
- Free from organic contamination such as silicone, amide and DOP.
- Low non-volatile residue, NVR
- Low in both particles and ion content.
- ESD safe permanent static dissipative handle option is available
- Thermally bonded foam head.
- High solvent capacity, compact and non-abrasive tip.
- Compatible with most common solvents.
- Design : Small tapered pointed head with rigid compact handle
Applications:
- Cleaning small slotted holes, grooves and hard to reach recess areas with IPA.
- Micro-mechanical cleaning.
- Applying lubricants or other liquids
- Remove flux residues and excess materials.
- For general purpose cleaning.

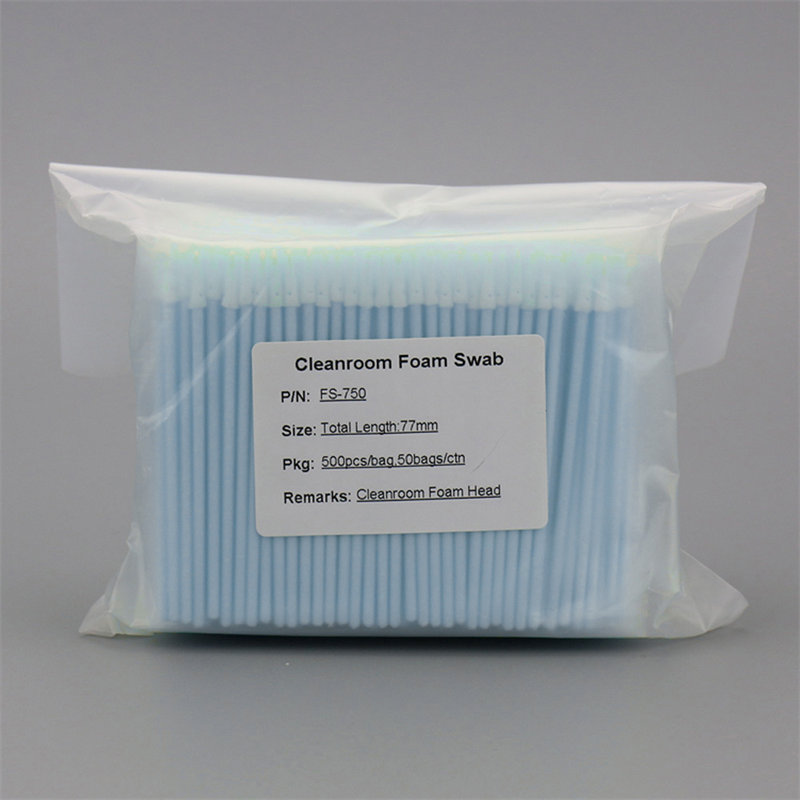

Packaging:
500 swabs / bag;
5 inner bags of 100 swabs;
100 bags /case
Cleanroom Foam Swab FS750
PHYSICAL CHARACTERISTICS
_________________________________________________________________
Property Description
_________________________________________________________________
Foam Head 100 PPI Polyurethane Foam
Head Bond Thermal
Handle Material Polypropylene
HANDLE SPECIFICATION DATA
_________________________________________________________________

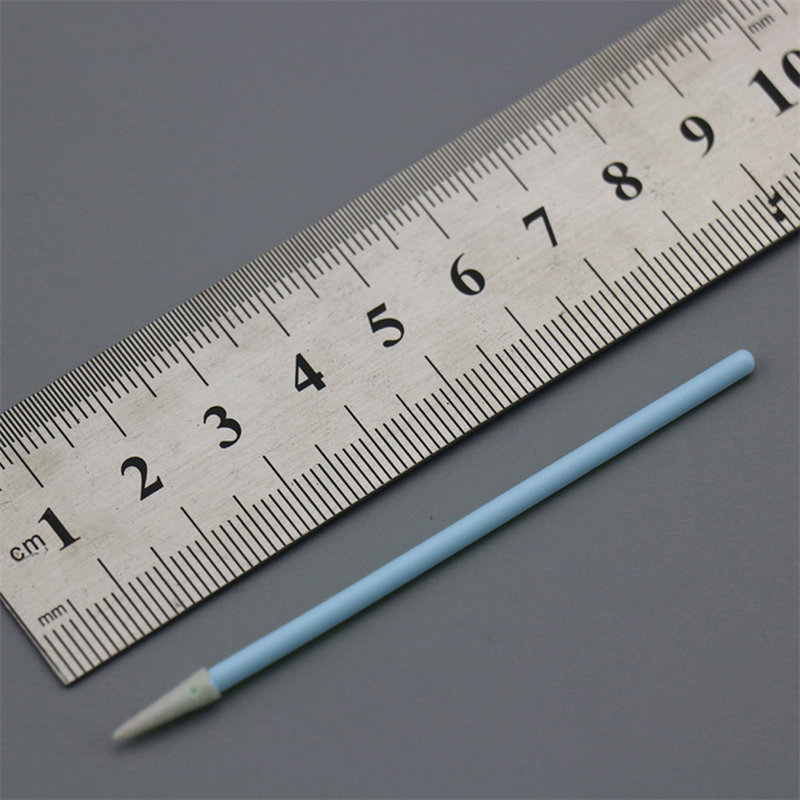

| Part Number | Head Width | Head Thickness | Head Length | Handle Width | Handle Thickness | Handle Length | Total Length |
| FS750 | 3.2 mm | 3.2 mm | 11 mm | 2.5 mm | 2.5 mm | 66 mm | 77 mm |
| (0.126") | (0.126") | (0.433") | (0.098") | (0.098") | (2.598") | (3.031") |
CONTAMINATION CHARACTERISTICS
_________________________________________________________________
Particles, Readily releasable
Particles > 0.5 um < 25000 counts/swab
_________________________________________________________________
Non-volatile Residue
DI Water < 0.15 mg/swab
IPA < 0.40 mg/swab
Ion Content
Chloride < 0.90 ug/swab
Sulphate < 0.40 ug/swab
Total Anions < 1.30 ug/swab
_________________________________________________________________
Organic Contamination
No detectable silicone, amide or DOP.
ESD CHARACTERISTICS ( Optional for FS750E)
_________________________________________________________________
Handle Resistivity 10×10 8-9 Ohms/Sq
Customized Content
At MediTech, we always strive to meet the needs of our customer’s application specific requirements. We offer customized product options. If you have any other questions, please feel free to contact our online customer service.
